• Suitable for charging under pressure of max 5500 mm H2O.
        • Total capacity 650 lt.
        • Working capacity 325 lt.
        • Fixed speed 70 rpm

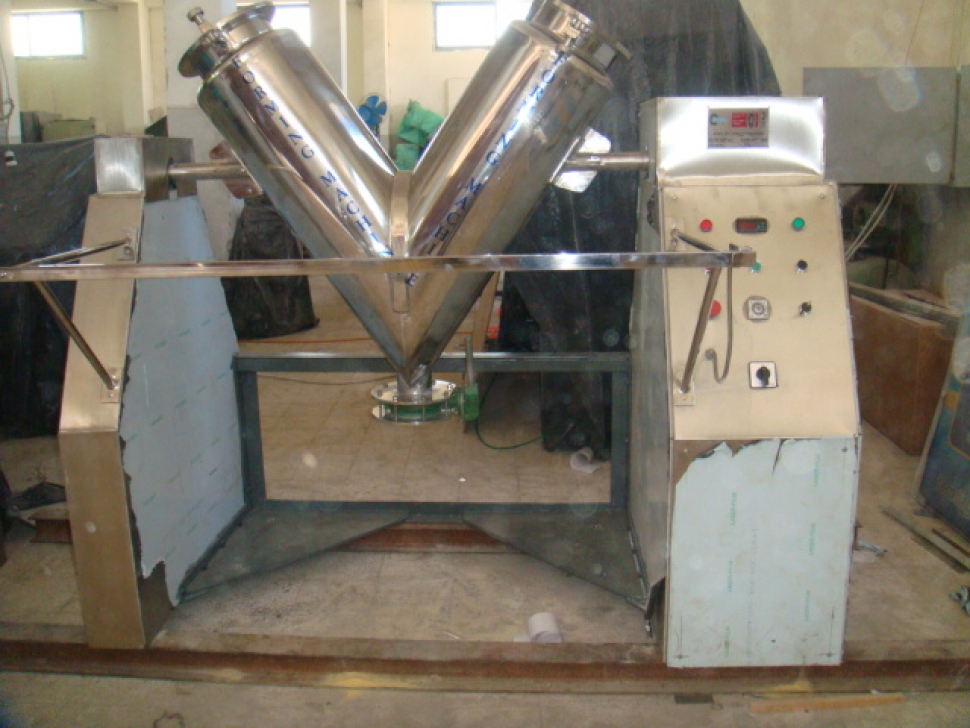

    The mixer consists of:

        • A container made up by two shaped tanks “V” type connected
        • All parts in contact with the product are made of stainless steel AISI 316
        • Other parts made of Steel.
        • Charging opening Ø 400 mm at the top of the tanks.
        • Discharge opening at the base of the “V” Ø 200 mm butterfly valve
        • Reduction gear motor HP 5.3 V.380 Hz.50 IP 55
        • Bearing structure in sheet and carbon steel profiles
        • Front protecting bar equipped with safety limit switch
        • The body of the mixer rotates on two supporting units with swinging bearings
