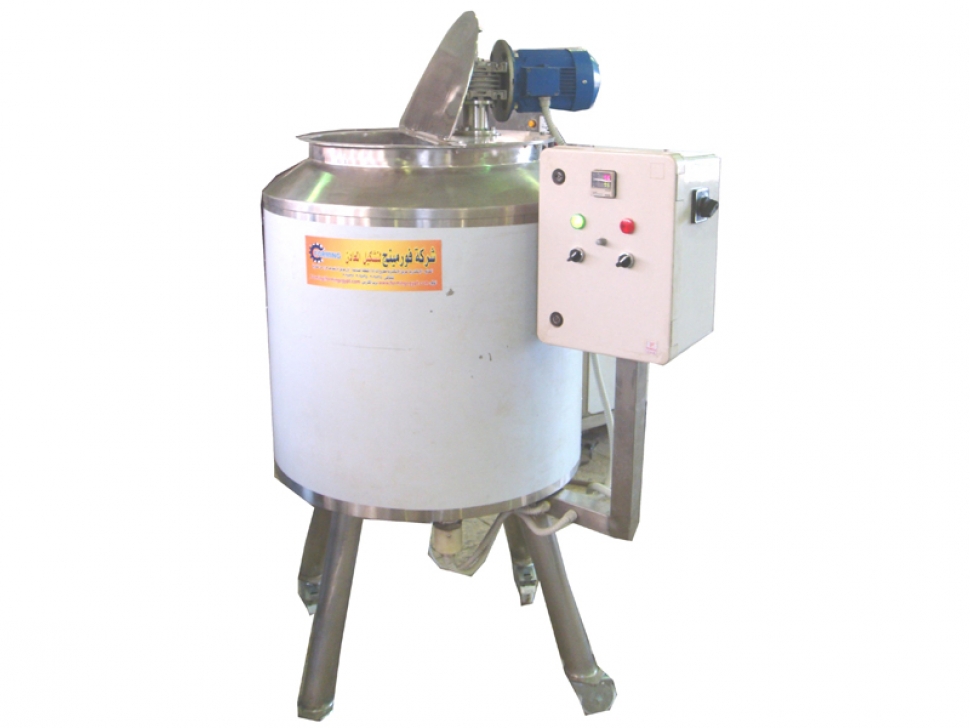

Forming Tank 150 Lt.

    Specifications:

    • Capacity of tank working (150Lt.) and gross 175liter.
    • Vertical cylinder tank made from ST.ST 316L.
    • Thickness of tank 4mm.
    • Bottom and top with dish end.
    • Double Jacket for Heating the shell and bottom ST.ST 304 Thic.3mm.
    • External shell ST.ST304 Thic.2mm.
    • Four ST.ST 304 legs the high of the bottom 40cm.
    • Variable speed agitator and R.P.M (400- 900R.P.M) with motor 2HP.
    • All internal welds with argon welding smooth and polished.
    • Variable speed agitator and R.P.M (400- 900R.P.M) with motor 2HP.
    • Internal surface tape polished 0.4um.
    • Mirror finish inside and outside.
    • Main Whole Ǿ 200mm.
    • Bottom out let Ǿ 38mm Tri clamp with butter fly valve.
    • Inlet Ǿ 38mm Tri clamp.
    • Working pressure 3bar.
    • Design pressure 4.5bar.
    • Working Temp.100ċ.
