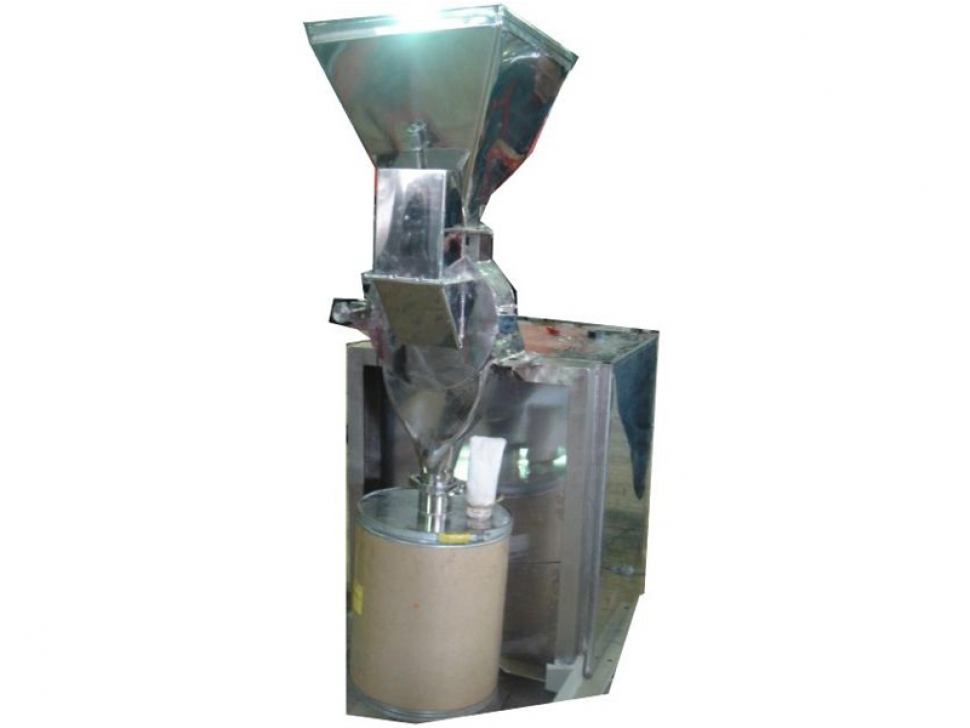

Powder Milling Machine

    GMP Construction Specifications:

    • No corners, crevices, dead zones.
    • Contact parts 316 L polish (Ra < 0-4 m).
    • Easy dismantling & assembling purposes.
    • Dust containment control connection for inlet & outlet sides.
    • Feeding powder by container.



    Safety Specification:

    • Over load protection, Earthing.
    • Low heat generation (minimum friction).
    • Safety switches to ensure proper fixing chamber on the body and belt guards.



    Technical Data:

    • Motor: 10 HP / 3000 RPM / AC. TEFC.
    • Starter: DOL.
    • Rotor Speed: Fixed Speed.
    • Screen Size: Perforated screen 2 × 250 micron مستورد . 2 × 500 micron مستورد .
    • Blades: (4- 6) Number from ST.ST 180.
    • Capacity: Min 50 kg / hr & Max 100 kg / hr.
    • The distance between the outlet and ground is 70 cm.
